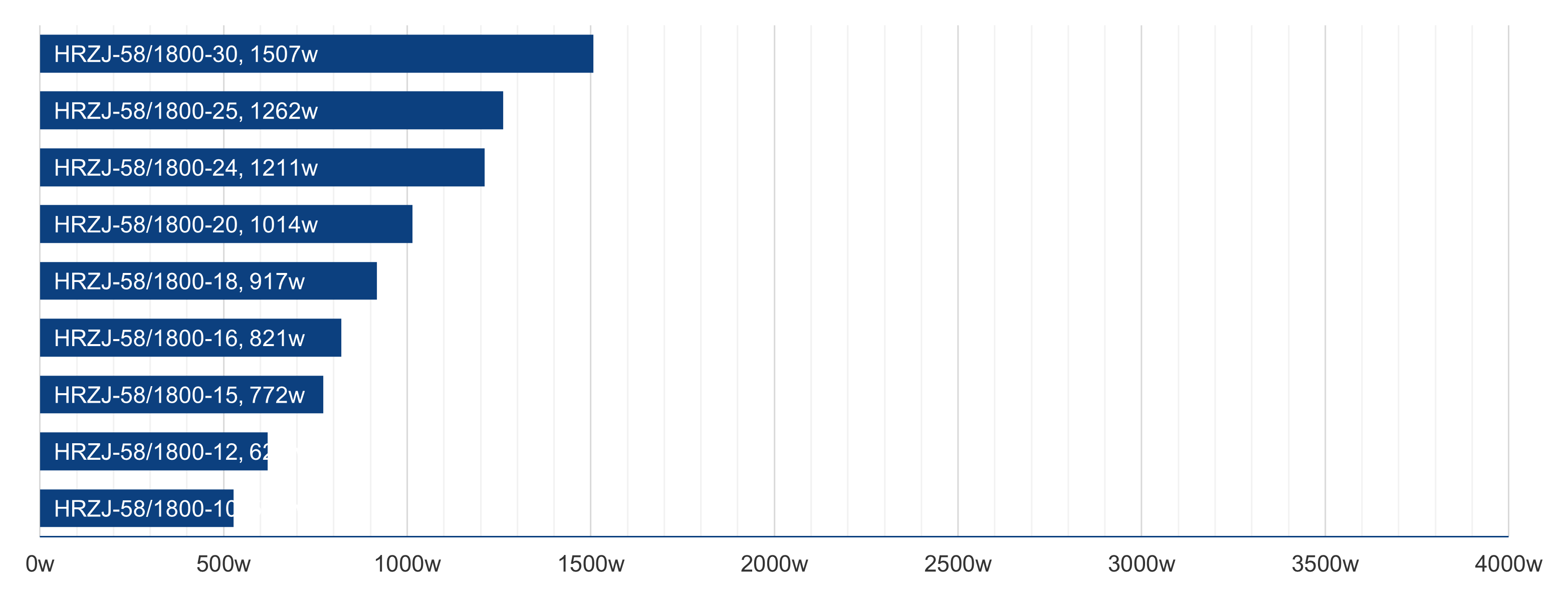

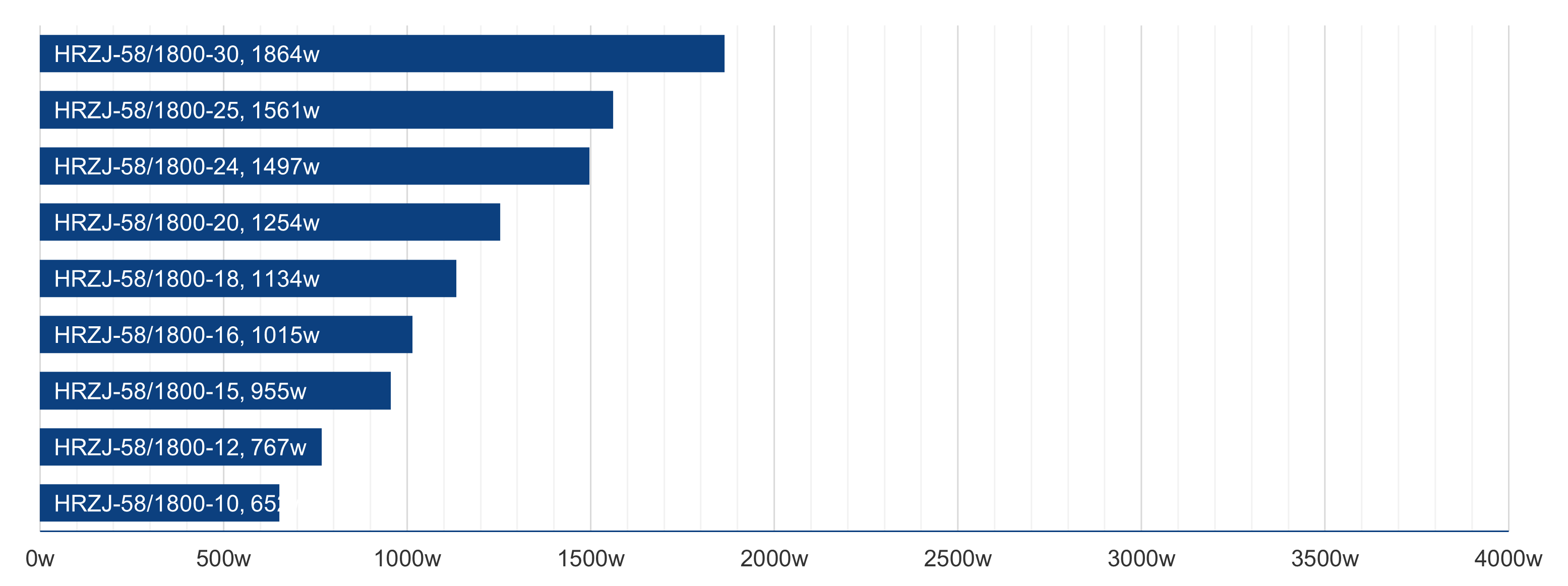

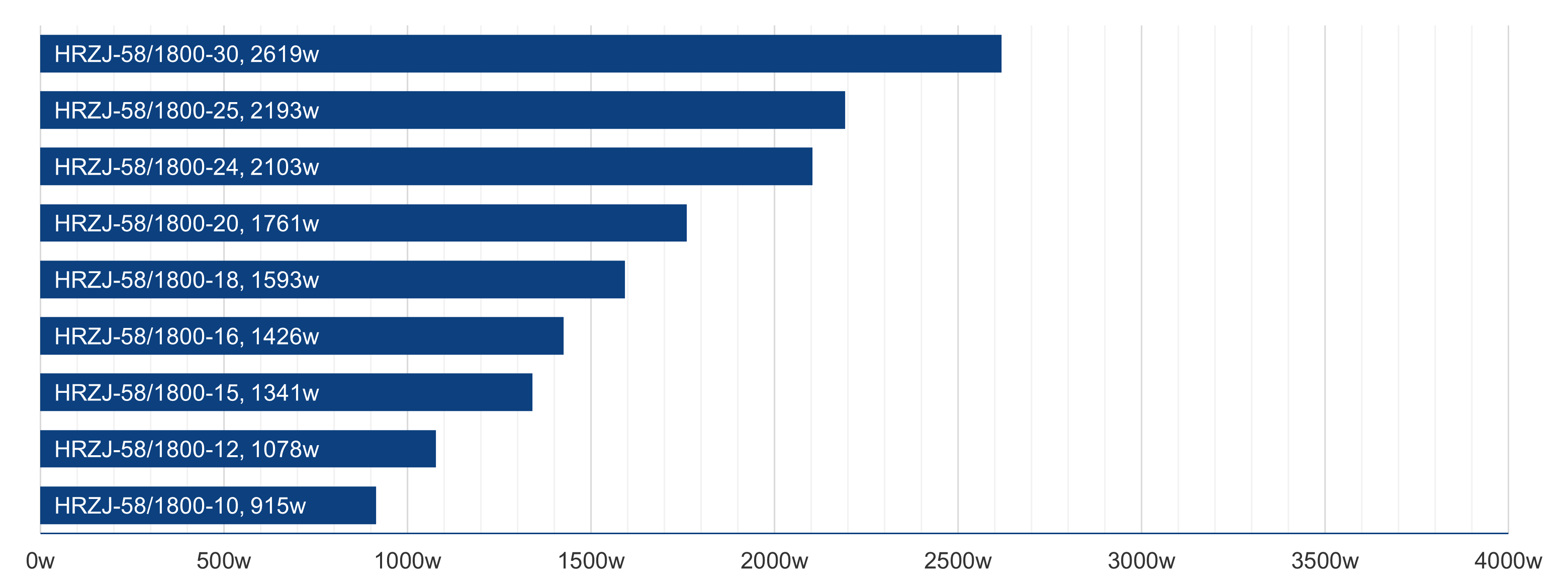

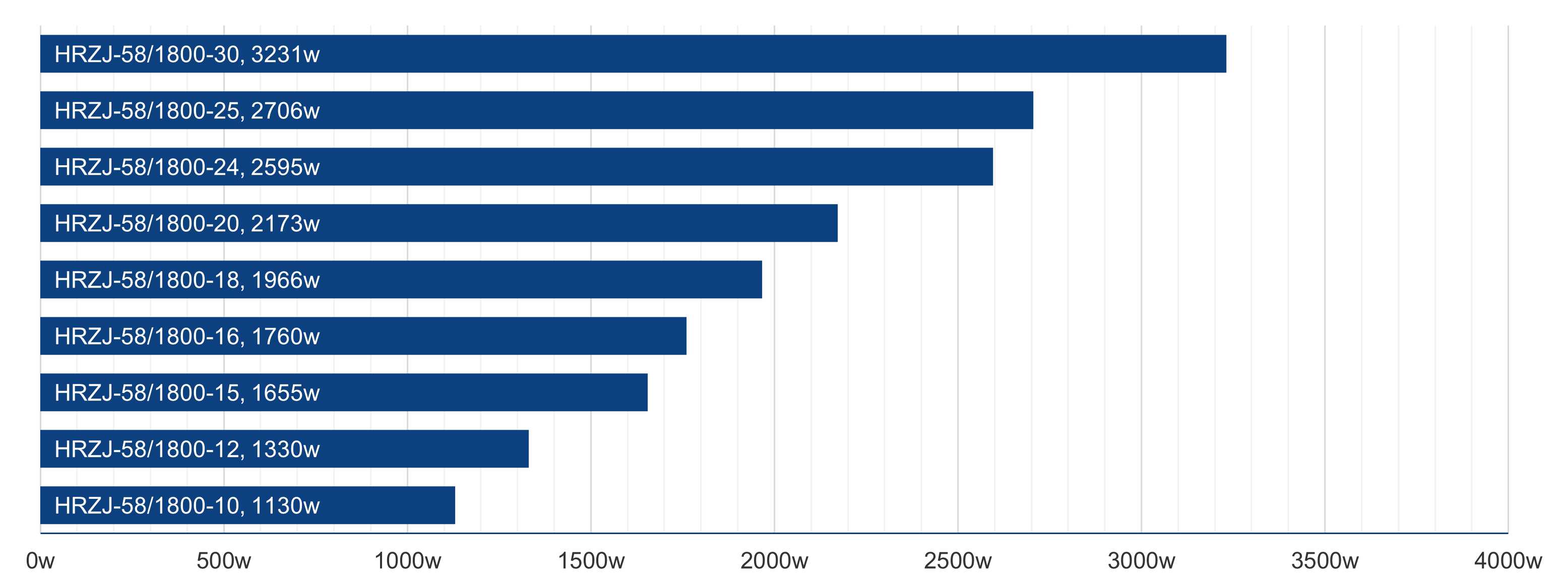

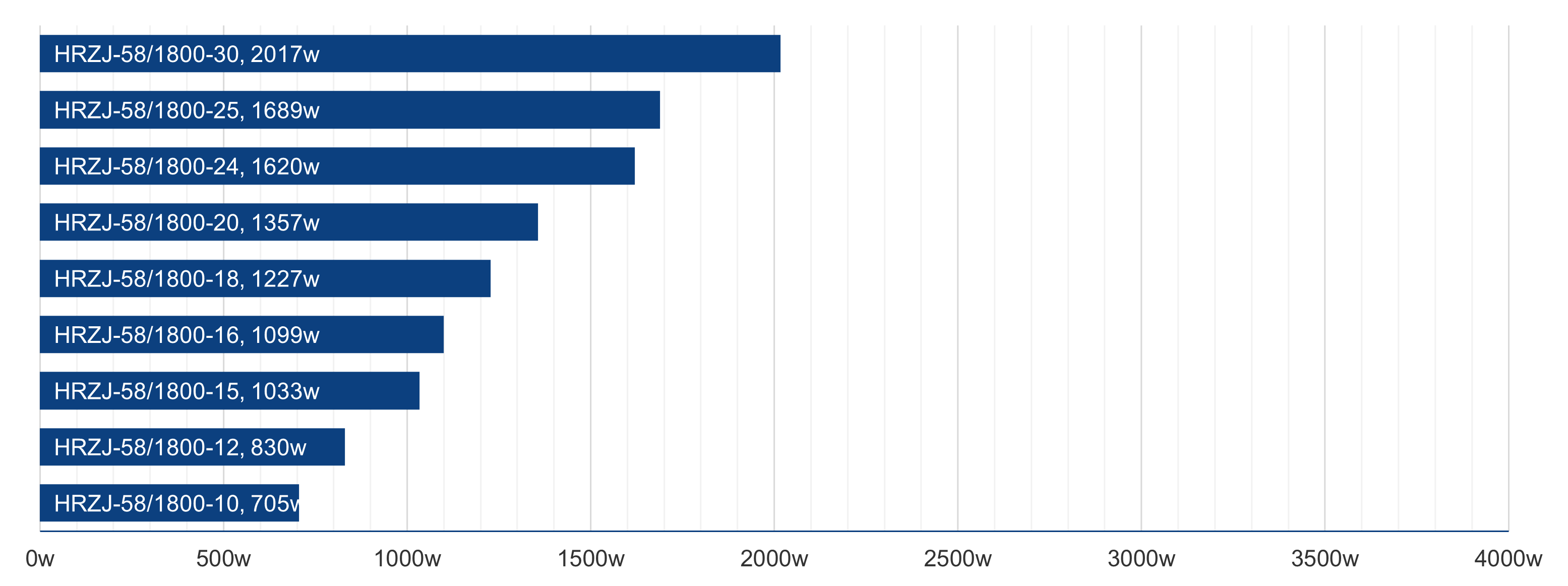

POWER OUTPUT PER COLLECTOR

Collector Name Gross area(AG) Gross length Gross width Gross height Power output per collector
GB=850W/㎡,Gd=150W/㎡ & u=1.3m/s
ϑm-ϑa
0k 10k 30k 50k 70k 92k
㎡ mm mm mm w w w w w w
HRZJ-58/1800-10 1.58 1,962 803 160 717 697 651 594 527 441
HRZJ-58/1800-12 1.86 1,962 950 160 844 821 766 699 620 520
HRZJ-58/1800-15 2.32 1,962 1,178 160 1,050 1,022 953 870 772 647
HRZJ-58/1800-16 2.46 1,962 1,253 160 1,117 1,087 1,014 925 821 688
HRZJ-58/1800-18 2.75 1,962 1,400 160 1,248 1,214 1,132 1,033 917 768
HRZJ-58/1800-20 3.04 1,962 1,550 160 1,379 1,342 1,252 1,142 1,013 849
HRZJ-58/1800-24 3.63 1,962 1,850 160 1,647 1,602 1,495 1,364 1,210 1,014
HRZJ-58/1800-25 3.79 1,962 1,928 160 1,717 1,670 1,558 1,422 1,262 1,057
HRZJ-58/1800-30 4.52 1,962 2,303 160 2,051 1,995 1,861 1,698 1,507 1,263
